Audio-Technica AT-VM95SP/H Cartridge & Headshell Combo

Audio-Technica AT-VM95SP/H Cartridge & Headshell Combo

by Audio-Technica
€121.96 - €121.96
€121.96
€121.96
€121.96 - €121.96
€121.96

Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.

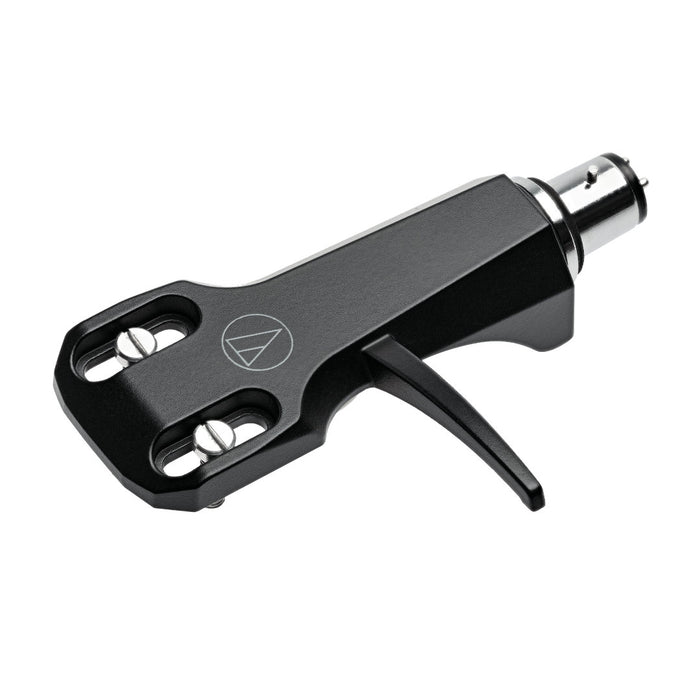

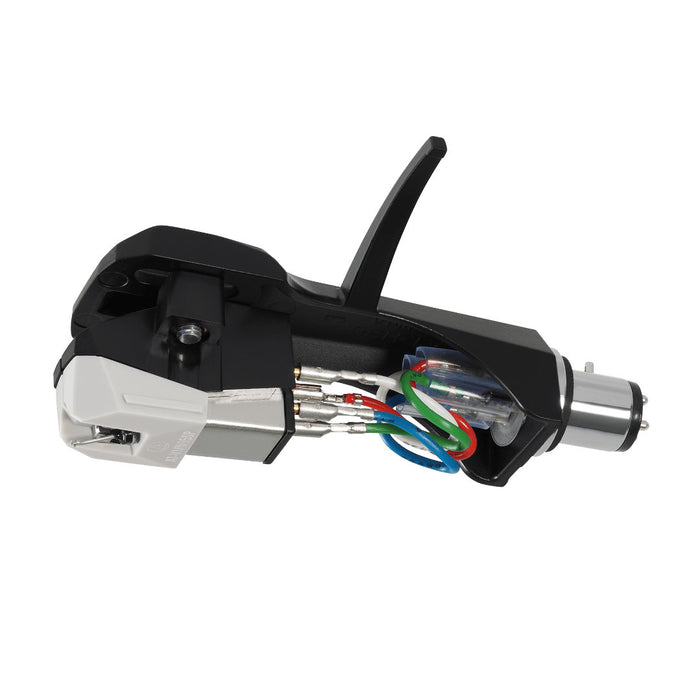

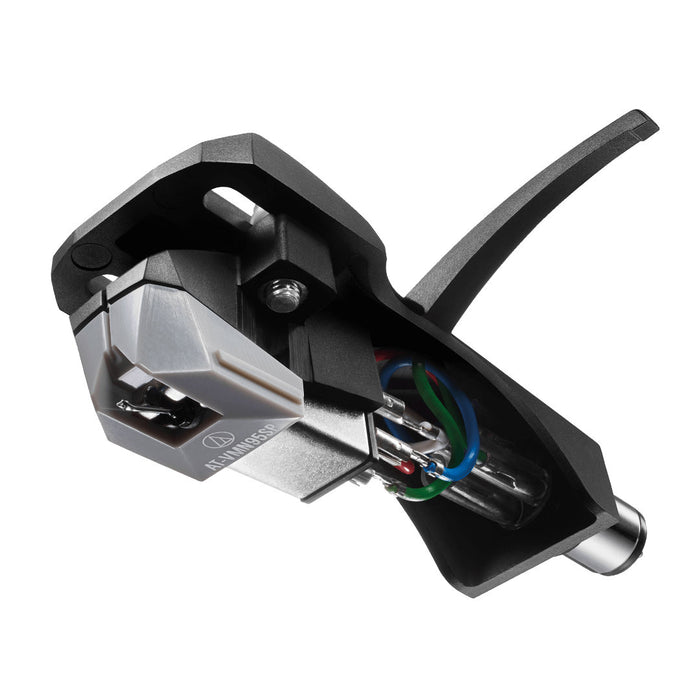

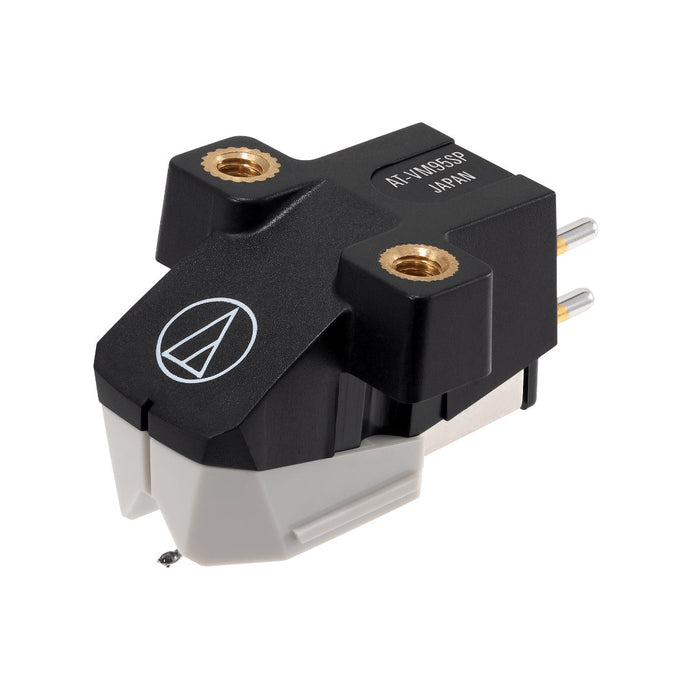

The AT-VM95SP/H combo kit includes the AT-VM95SP dual moving magnet cartridge premounted on the AT-HS6BK headshell.

Specifications:

  • Frequency Response: 20 - 20,000 Hz
  • Vertical Tracking Angle: 23°
  • Vertical Tracking Force: 4.5 to 5.5g (5.0g standard)
  • Stylus Construction: Bonded Round Shank
  • Recommended Load Impedance: 47,000 Ω
  • Coil Impedance: 3.3 kΩ (1 kHz)
  • DC Resistance: 485 Ω
  • Coil Inductance: 550 mH (1 kHz)
  • Output Voltage: 2.7 mV (@ 1 kHz, 5 cm/sec)
  • Output Channel Balance: 1.5 dB (1 kHz)
  • Stylus Shape: SP 3 mil Conical Bonded
  • Cantilever: Aluminium Pipe
  • Static Compliance: 12 x 10⁻⁶ cm/dyne
  • Dynamic Compliance: 2 x 10⁻⁶ cm/dyne (100 Hz)
  • Mounting: 1/2” centres
  • Dimensions: 21.2 × 21.4 × 62.4 mm (H x W x D)
  • Model: AT-VM95SP/H
  • Recommended Load Capacitance: 100-200 pF
  • Replacement Stylus: AT-VMN95SP
  • Stylus Size: 3 mil
  • Type: VM Stereo Dual Magnet
  • Weight: 15.5 g
  • Wire Used for Coil: T.P. Copper
