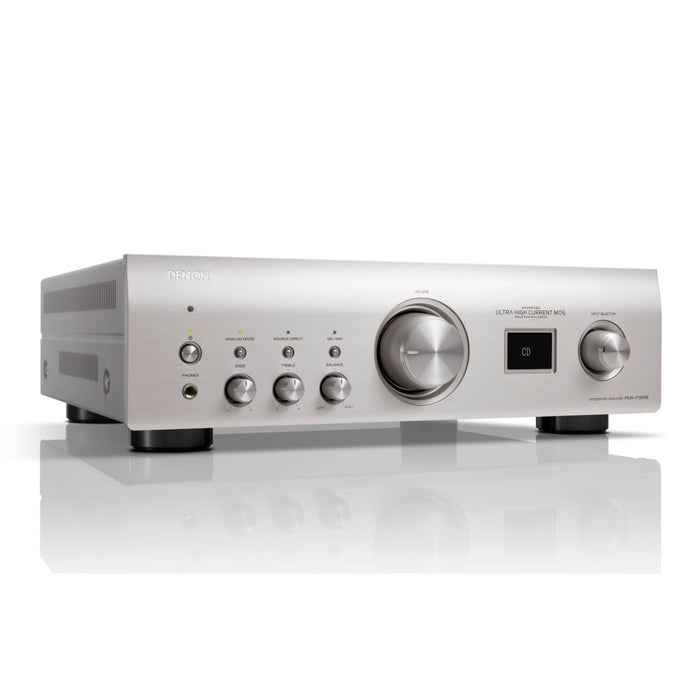

Denon PMA-1700NE Integrated Amplifier

Denon PMA-1700NE Integrated Amplifier

by Denon
€1,755.12
€1,755.12 - €1,755.12
€1,755.12
€1,560.00
€1,560.00 - €1,560.00
€1,560.00

Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.
Color: Black

With ultra-high current single push-pull circuit power and Advanced AL32 Processing, the Denon PMA-1700NE retains the detail of the original recording.

Featuring advanced ultra-high current single push-pull circuit power, Advanced AL32 Processing, and MM/MC phono equalizer, the Denon PMA-1700NE integrated amplifier delivers extraordinary sound quality with precise detail.

Key Features:

  • High-power 140W integrated amplifier
  • Advanced AL32 Processing Plus
  • USB-DAC
  • High-precision electrical controls
  • MM and MC phono equalizer
  • Optical and coaxial digital inputs
  • External pre-amp input terminals
  • TV auto standby (digital input)
  • Six-block chassis configuration and direct mechanical ground construction
  • Digital isolator
  • Analog mode

Advanced ultra-highcurrent (UHC) single push-pull amplifier

Wide bandwidth captures everything from deep bass to detailed highs. The UHC design ensures drivability of a wide range of speaker types and impedances.

Hi-Res Audio certified

Able to decode high-resolution audio ALAC, FLAC, and WAV lossless files up to 24-bit/192 kHz, as well as DSD 2.8MHz and 5.6MHz tracks (the audiophile format of SACD), PMA-1700NE lets you enjoy each note exactly as the artist intended.

Advanced AL32 Processing Plus

Advanced AL32 Processing Plus uses data interpolation algorithms, which support highresolution 384 kHz/32-bit audio sources. The algorithms add in the points that should exist before and after large quantities of data, smoothing out the waveform and restoring information that was lost during the digital recording. The resulting playback is highly detailed, free of interferences, richly expressive in the lower range, and beautifully faithful to the original sound. Hear your favorites like never before.

Built-in phono equalizer

Denon is well known for high-quality vinyl playback. The built-in phono equalizer allows direct connection to a turntable and supports input from MM cartridges. Some models also support input from MC cartridges.

Digital inputs

The amplifier features optical and coaxial digital inputs supporting PCM signals up to 192 kHz/24 bit to improve the sound quality of your TV audio, Blu-Rays, media players, computer, and more.

110+ years of firsts in audio technology

Founded in 1910, Denon has a deep heritage of "firsts" in audio technology—from Japan's first audio electronics manufacturer to producing the world's first commercial CDs. This focused investment in audio R&D ensures you get the latest technology and highest quality with every listening experience.

Specifications:

  • Rated Output Power: 70W + 70W (8ohm,20Hz-20kHz,THD0.07%) | 140W + 140W (4ohm, 1kHz, THD0.7%)
  • Speaker Impedance: A or B : 4 ~ 16ohm | A + B : 8 ~ 16ohm
  • Frequency Response: 5Hz - 100kHz (0~ -3dB)
  • Total Harmonic Distortion: 0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz
  • Dumping Factor: 100 and over
  • Input Sensitivity: Phono input: MM: 2.5 mV / 47 kohm | MC: 200
  • RIAA Deviation: 20 Hz - 20 kHz ±0.5 dB (MM/MC)
  • Phono Maximum Input: MM : 130mV / 1kHz | MC : 10mV / 1kHz
  • Input Sensitivity: CD/LINE/RECORDER: 125 mV / 19 kohm
  • Input Sensitivity: Power Amp input: 0.85V / 47kohm (EXT. PRE)
  • Signal to Noise Ratio: PHONO (MM): (89dB) | PHONO (MC): (74dB) | CD: (107dB)
  • Tone Control: BASS : 100Hz ±8dB | TREBLE : 10kHz ±8dB
  • Power Consumption: 295W
  • at Standby: 0.2W TV autoplay off | 0.4W TV autoplay on

Audio Feature:

  • Power Amplifier CircuitP: New UHC-MOS | Single Push Pull (7)
  • Power Trans: Dual El Core
  • Pre Amplifier Circuit: Variable Gain Preamplifier (OP AMP)
  • Volume: Electric (MUSES 72323)
  • Bass / Treble / Mid / Balance Control: Yes / Yes / No / Yes
  • Type of Tone Control: Electric Controlled by Potentiometer
  • Headphone Circuit: Use Poweramplifier
  • Source Direct: Yes
  • Analog Amp Mode: Yes (button on front panel)
  • Other: 70
  • DAC Circuit: PCM1795
  • Digital Filter: Fixed
  • Digital Processing: Advanced AL32 Processing Plus
  • DAC Master Clock Design (Not Support Network Playback): Yes
  • Asyncronous mode (for USB-B input): Yes
  • Isolator (for USB-B input): Yes Full Isolation

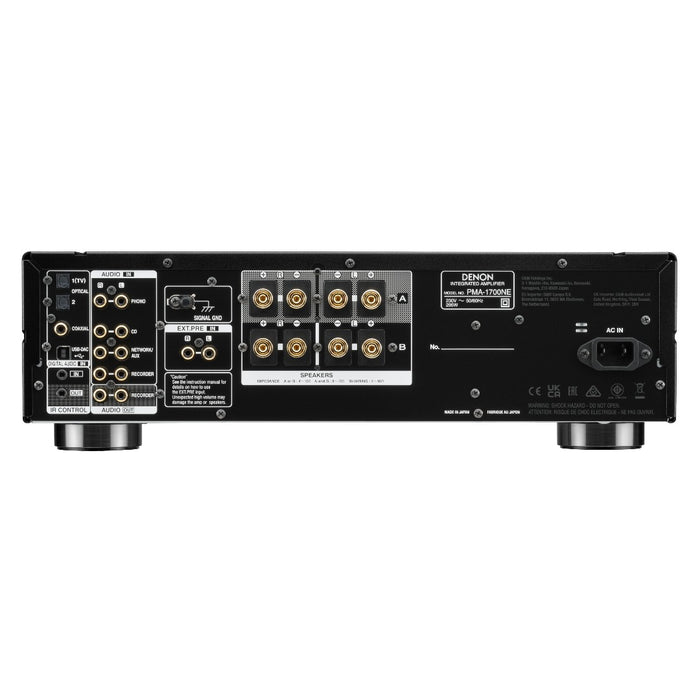

Connectivity:

  • Phono Input Yes (MM / MC): *default=MM
  • Analog Input (include Phono) / REC Out (RCA): 4/1 (PHONO / CD / NETWORK ,AUX/ RECORDER)
  • Optical input / output (Maximum Support): 2 / 0 (192kHz/24bit)
  • Coaxial input / output (Maximum Support): 1 / 0 (192kHz/24bit)
  • Ext. Pre Input (Power Amp Direct): Yes(Ext.Pre)
  • 2 sets of Speaker Output: Yes (Bi-wiring)
  • Speaker Terminal: Gold Plated
  • Headphone Output: 1 (Turn off the speaker when inserting headphone)
  • Remote Control Bus Terminal: Yes (mini)
  • AC Inlet: Yes
  • Wi-Fi: No
  • HEOS: No
  • USB B (USB DAC): 1 (Rear)
  • Module or Main Device: New XMOS (XU210-256-TQ128 )
  • PCM Sample Rate: ~384kHz/32bit
  • DSD Audio Streaming (DoP): ~11.2MHz
  • Roon Certificaton: Yes(Roon Tested) TBD

Control:

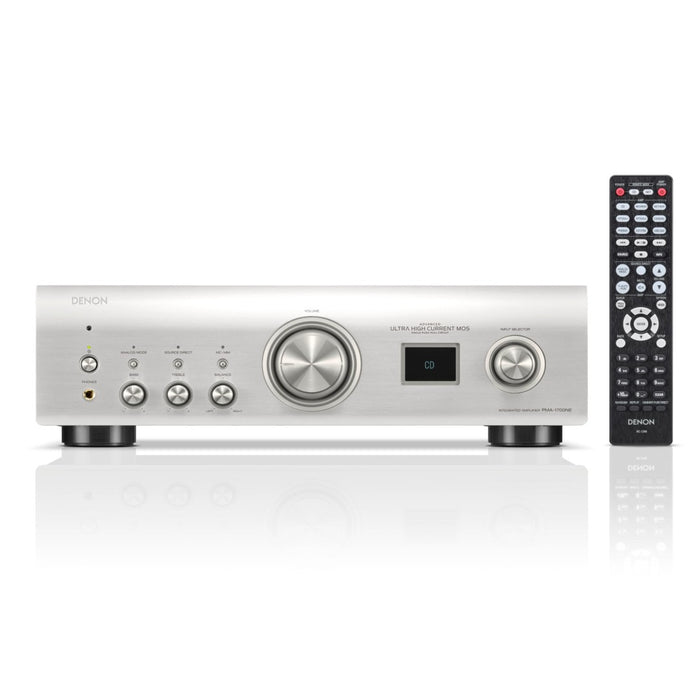

  • Remote Controller:  System Remote (w/CD Player Control)
  • Unit control (Button): Push Switch: 1 | POWER Tact Switch : 3 | ANALOG MODE, SOURCE DIRECT, MM / MC3
  • Unit control (Knob): 5 (VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCE)
  • LED: POWER: 1 Red / Green | ANALOG MODE: 1 Green | SOURCE DIRECT: 1 Green | MM / MC :1 Green
  • Front Panel Display: Front Panel Display (OLED 128 x 100 dot) MXS4036-A
  • Display Language: Alphabetical
  • Dimmer for Front Display: Bright / Dim / Dark / Off
  • Control with App via Network Player (Use Remote Control Bus): Yes
  • TV Auto-play (Opt/Coax digital-in detecter): Yes
  • Last Function Memory: Yes
  • Auto Standby Mode: Yes
  • Remote Controller: Yes
  • Battery: Yes (AAA x2)
  • Power Cord: Yes

General

  • Unit (W x D x H): 434 x 410 x 135mm
  • Cabinet Size (W x D x H): 434 x 374 x 135mm
  • Net weight: 17.6kg
  • Packaging Dimensions (W x D x H): 548 x 520 x 249mm
  • Packaging gross weight: 20.4kg
